My Deliverables 😎

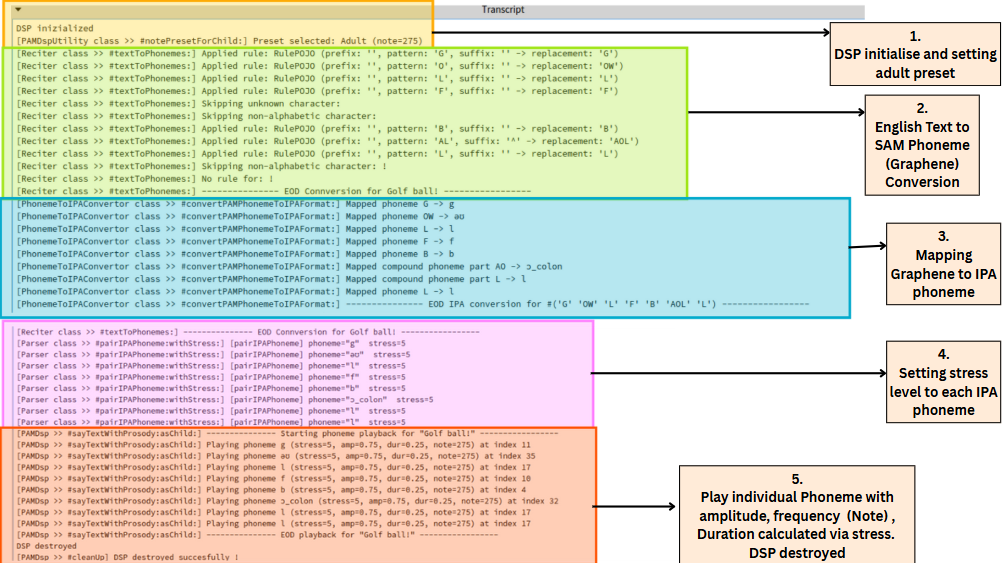

TTS conversion code snippet and its Transcript (Logs)

Plug in these Code Snippets in Playground to hear PAM speak ! ❤️

        | dsp |

        "initliase the DSP class"
        dsp := PAMDsp new.

        "audio for a array of numbers"
        dsp sayNumbers: #(5 6 7 2).

        "audio for all numbers from 0 to 9"
        dsp sayNumbers0to9.

        "audio for sentence"
        dsp sayText: 'Dogs'.

        "audio for sentence with prosody and child preset"
        dsp sayTextWithProsody: 'Dogs' asChild: true.

        "audio for sentence with prosody and adult preset"
        dsp sayTextWithProsody: 'golf day!' asChild: false.

        "Transcript for logs"
        Transcript open.


Project Abstract 😎

PAM (Pharo Automated Mouth) is a rule-based Text-to-Speech (TTS) system developed for the Pharo environment. Unlike modern deep-learning TTS systems that require extensive datasets and computational resources, PAM employs a lightweight rule-based approach inspired by the classic SAM (Software Automatic Mouth) system.

The system implements text-to-phoneme conversion using 402 English → Grapheme rules and 47 Grapheme → IPA phoneme rules, producing accurate IPA phoneme sequences with stress markers.

For synthesis, PAM adopts a concatenative sample-based approach: instead of generating audio purely algorithmically, it plays back pre-recorded audio samples of phonemes. These are sequenced and stitched together through a TpSampler-driven DSP pipeline (integrated with Phausto), enabling intelligible speech output.

On top of this, PAM introduces prosody control, allowing each phoneme playback to be modulated by parameters such as pitch (adult/child voice presets), amplitude (stress-based loudness), and duration (temporal stretching). This hybrid design — rule-based phoneme generation + sample-based concatenative synthesis + prosodic control — makes PAM lightweight and customizable while still producing natural-sounding speech.

Core Architecture

PAM consists of four main components:

Reciter Engine: Class Reciter → Converts English text to Graphemes [ SAM Phoenemes ] using pattern-matching rules. The rules are adapted from SAM.

IPA Converter: Class PhonemeToIPAConvertor → Transforms graphemes into International Phonetic Alphabet (IPA) format of phonemes.

Audio Synthesis: Class PAMDsp → Leverages Phausto’s DSP capabilities for speech generation using pre-recorded audio samples of phonemes.

Prosody Generation: Class Parser → Gives prosody to PAM by tweaking frequency, amplitude, length dynamics, and generating age-like voice variations.

      "Gasoline test"

      | phonemeOutput inputText |
      inputText := 'Gasoline'.

      phonemeOutput := Reciter textToPhonemes: inputText.

      self assert: phonemeOutput equals: #('G' 'EY4S' 'OW' 'L' 'IH' 'N' 'EH').


      splitCompoundPhoneme: 'RIY'
          → splits to: #('R' 'IY')
          → converts to: #('r' 'i_colon')


      "Complete TTS with prosody"
      dsp := PAMDsp new.
      dsp sayTextWithProsody: 'hello' asChild: false.

      "Number sequence generation"
      dsp sayNumbers: #(1 3 5 7).


          durationForStress: stress
              "Map stress in range [4..6] with duration in range [0.1..0.4].

                  ----- INDEX ----
                   4 = short/fast (0.1s),
                   6 = long/slow (0.4s)."
              ^ 0.1 + (((stress - 4) / 2.0) * 0.3)


          amplitudeForStress: stress
              "Map stress in range [4..6] with amplitude in range [0.5..1.0].

                  ----- INDEX ----
                   4 = soft (0.5),
                   6 = strong (1.0)."
              ^ 0.5 + (((stress - 4) / 2.0) * 0.5)


      Metacello new
          baseline: 'PAM';
          repository: 'github://neerja-1984/PAM-GSoC-25-Project:master/src';
          onConflict: [ :ex | ex useIncoming ];
          onUpgrade: [ :ex | ex useIncoming ];
          load.


          Documents/
          ├── phonemes
          └── numbers


Technical Challenges Overcome 😎

1. Rule Ordering Bug Resolution

Problem: Multiple rules matched the same input, leading to incorrect phoneme selection for word "BREAK".

Solution: Hence, first match all rules -> amongst all selected rules --> choose the one of longest length.

Impact: Ensured accurate English text-to-phoneme conversion.

2. DSP Stereo Bug

            sampler := TpSampler new.
            sampler label: aLabel.

            samplePlayer := sampler pathToFolder: folderPath.

            "problem inducing line"
            dspInstance := samplePlayer stereo asDsp.


Problem: Our audio files were a mix of both Mono and Stereo.Hence, some audio files couldn't be heard properly

Solution: Developed FFmpeg + helper scripts to convert mono audio files to stereo.

Impact: Reliable playback for all phonemes, standardized pipeline.

3. Phoneme File Indexing Bug

          myString := Reciter textToIPAPhonemes: 'book'.
          "myString = #('b' 'ʊ' 'k')"

          "list -> our audio files (presumably sorted by OS)"
          "for each character of myString -> find indexOf character from the list"
          "can be an issue: Files sorted by OS are platform-dependent and differ from how Phausto sorts them"

          [myString do: [ :i |
              dsp setValue: ( list indexOf: i ) parameter: 'PAMSamplerIndex'.
              dsp trig: 'PAMSamplerGate'.
              0.2 seconds wait
          ]] fork.

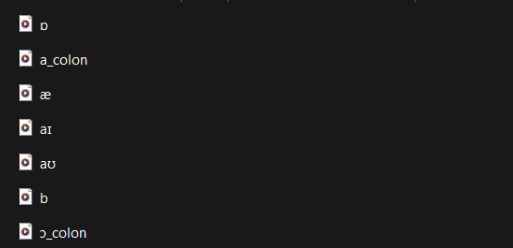

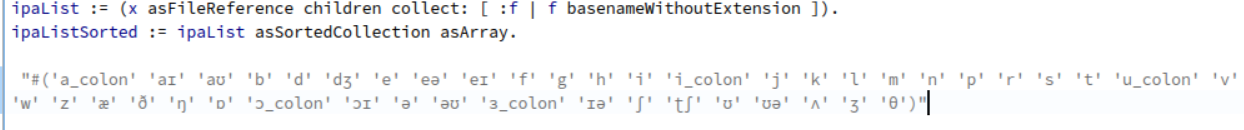

Image 1 is how phausto sorts them, Image 2 is how Windows Filesystem sorts them

4. Cross-Platform Path Handling

  folderPath := FileLocator documents / aFolderName.


Problem: Windows/macOS path separators differ, causing issues with folders of numbers and phonemes stored in Documents (e.g., C:\Users<your-name>\Documents\numbers).

Solution: Implemented FileLocator-based path resolution to generate OS-independent paths.

Impact: Seamless cross-platform deployment; generalized way to configure paths for any OS.

5. Audio Metadata Issue

Problem: Phausto (via libsndfile) cannot properly read audio files containing metadata tags.

Solution: Stripped metadata from all phoneme audio files using online-audio-converter.com. Confirmed playback success after conversion.

Timeline Chart of PAM Development ❤️

Future Development Opportunities 😎

Enhanced Prosody: Implement formant synthesis for more natural speech patterns.

Voice Customization: Additional gender voice presets.

Real-time Processing: Streaming audio generation for long texts.

Acknowledgements ❤️

Special thanks to my mentors Domenico Cipriani and Nahuel Palumbo for all their guidance. Starting from Pharo architecture, DSP integration, software engineering best practices to Debugging sessions we've had. PAM wouldn't have reached this stage if it wasn't for their guidance. Their expertise in both linguistic processing and audio synthesis was instrumental in achieving the project goals.

Noteworthy links

1. The project builds upon the foundational work of the original SAM system and leverages the modern capabilities of Phausto for audio generation.

2. Understanding IPA phoenems : WalkOnCross Github. Dataset of 44 Phoneme taken from here: Github

3. Remove Metadata from audio files : online-audio-converter

Useful Links ❤️

1. PAM-GSoC-25-Project repository

2. GSoC'25 Weekly Updates Readme !

3. My Proposal for GSoC'25 -> PAM : Pharo's TTS model

4. My tutorial to learn all about TTS models ( from ancient rule-based system to current deeplearning based models)

5. My tutorial to learn Pharo as a beginner
